Field Vane Shear Test (VST) in Birmingham

BS 5930 and Eurocode 7 (EN 1997-1:2004) define the field vane shear test (VST) as the reference method for measuring undrained shear strength (cu) in soft to firm cohesive soils. Birmingham sits on a complex drift geology — thick glacial tills over Mercia Mudstone, with isolated lenses of soft alluvial clay along the River Tame. In these low-strength layers, a standard SPT can produce misleading N-values due to pore-pressure buildup. That is why we recommend VST for embankment and foundation design in the city. Combining VST data with a consolidation test helps predict long-term settlement under structures, while a direct shear test provides the drained parameters needed for slope stability checks.

VST in Birmingham’s soft alluvial clays can detect cu values below 15 kPa, directly controlling foundation bearing capacity and excavation support design.

Scope of work in Birmingham

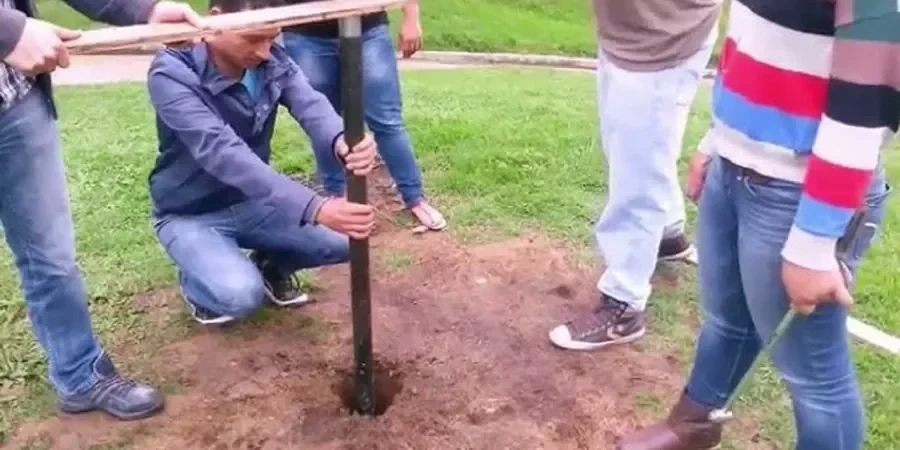

A common mistake in Birmingham is assuming that glacial till behaves uniformly. In reality, the till contains soft clay pockets — especially near the Edgbaston and Moseley areas — where undrained strength can drop below 20 kPa. The field vane shear test catches these weak zones directly. The procedure is straightforward: we push the four-bladed vane into undisturbed soil, apply a torque at a standard rate (6° per minute), and record the peak rotation moment. The test follows BS 1377-9 and BS 1377-7:1990. We always remould the soil after failure and rotate again to measure residual strength — this gives you sensitivity ratios critical for excavation safety. Results are reported as undisturbed cu, remoulded cu, and sensitivity index.

Field Vane Shear Test (VST) in Birmingham – Geotechnical Investigation

Parameter	Typical value
Vane geometry	Rectangular four-blade, 50 x 100 mm (standard)
Rotation rate	6° per minute (BS 1377-7)
Measured parameters	Peak torque, remoulded torque, sensitivity
Test depth range	0.5 – 15 m below ground level
Typical cu range in Birmingham	15 – 80 kPa (alluvial clay to firm till)
Applicable standards	BS 1377-7:1990, BS 1377-9, Eurocode 7
Equipment	Geonor H-10 or equivalent torque head with calibrated springs

Live process video

Critical ground factors in Birmingham

Birmingham’s climate — 650 mm of annual rainfall and a high water table in the glacial till — keeps clay layers close to saturation year-round. This means the undrained strength you measure in summer may drop by 30% after a wet winter. If you rely solely on SPT N-values, you risk overestimating bearing capacity. The VST gives you a direct, site-specific cu value. We always run the test at 1 m intervals or at every change in stratum. For projects near the canal network or the River Cole, where soft alluvial clay can exceed 4 m in thickness, VST data becomes the controlling parameter for foundation depth and excavation support design.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.biz

Applicable standards: BS 1377-7:1990 – Methods of test for soils: Shear strength tests (vane test), BS 1377-9 – Standard Test Method for Field Vane Shear Test in Saturated Fine-Grained Soils, Eurocode 7 (EN 1997-1:2004) – Geotechnical design, clauses on undrained shear strength, Highways England CD 225 – Design for new pavement foundations (UK practice)

Our services

We offer two levels of field vane shear testing in Birmingham, depending on project complexity and site access.

Standard VST – Manual Torque Head

For shallow investigations up to 6 m depth. Uses a hand-operated torque head with calibrated springs. Ideal for small residential extensions, garden retaining walls, and drainage trenches in Birmingham’s inner suburbs (Edgbaston, Harborne, Kings Heath). Results delivered within 48 hours.

Deep VST – Geotechnical Drill Rig Mounted

For depths of 6 to 15 m. The vane is advanced through a hollow stem auger or cased borehole. Recommended for multi-storey buildings, bridge abutments, and canal-side developments in Birmingham’s city centre and redevelopment zones (Digbeth, Eastside). Includes remoulded testing at every depth.

Q&A

When should I choose VST over a standard SPT in Birmingham?

You should choose VST whenever the site contains soft to firm clays or silts — common in Birmingham’s alluvial deposits along the River Tame, Rea, and Cole. SPT is unreliable in these materials because the driving energy can cause pore-pressure build-up and give artificially high blow counts. VST measures undrained shear strength directly, which is the controlling parameter for bearing capacity and excavation stability in cohesive soils.

How much does a field vane shear test cost in Birmingham?

A standard VST at a single depth (manual head, shallow) typically costs between £520 and £1,140, depending on site access, number of test depths, and whether you need disturbed samples for laboratory classification. Deep VST with a drill rig adds mobilisation and depth-related charges. Contact us for a site-specific quote — we serve Birmingham and the whole West Midlands.

What is the difference between peak and remoulded vane strength?

Peak strength is the maximum torque recorded as the vane rotates through undisturbed soil. It represents the intact undrained shear strength. After rotation, we continue to turn the vane rapidly to remould the soil — this simulates the effect of construction disturbance. The remoulded strength is the lower value measured after remoulding. The ratio of peak to remoulded strength is the sensitivity index. In Birmingham’s glacial tills, sensitivity typically ranges from 2 to 5, meaning the soil can lose 50–80% of its strength when disturbed. This is critical for excavation support and temporary works design.

Do you follow BS or ASTM for VST in Birmingham?

We follow both BS 1377-7:1990 and BS 1377-9. The British standard specifies a rotation rate of 6° per minute and a vane height-to-diameter ratio of 2:1. Our equipment is calibrated annually against UKAS-traceable torque springs. All results are reported in accordance with Eurocode 7 requirements. For projects requiring UKAS-accredited testing, we can provide a scope-specific quotation.
